Windows Registry Forensics 2025

Key insights for your investigation found in one place! An overview into Windows Registry Forensics and how to leverage data for your investigations.

Jump to…
Introduction
Registry Basics and Structure
Registry Files and Their Forensic Value
Tools for Registry Forensics
Windows Registry Forensics with Cyber Triage
Keep Learning Registry Forensics

Introduction

The Windows registry is a central database that is leveraged by the operating system and many applications to store all sorts of configuration information and user preferences.

Leveraging data from the registry can provide key insights to an investigation that may not be found in other artifacts. A few of the key areas of focus are:

• User activity (program execution, files and folders accessed, urls types, and much more!)
• System configuration (OS information, hostname, timezone, adapter settings, network configuration, audit policy, and much more)
• Installed applications
• Attached storage devices
• Malware persistence

If you are looking to dive straight into key forensic artifacts from the registry check out one of our previous blog posts!

• Registry Forensics Cheat Sheet
• NTUSER.dat Forensic Analysis
• Network based evidence in the registry

Registry Basics and Structure

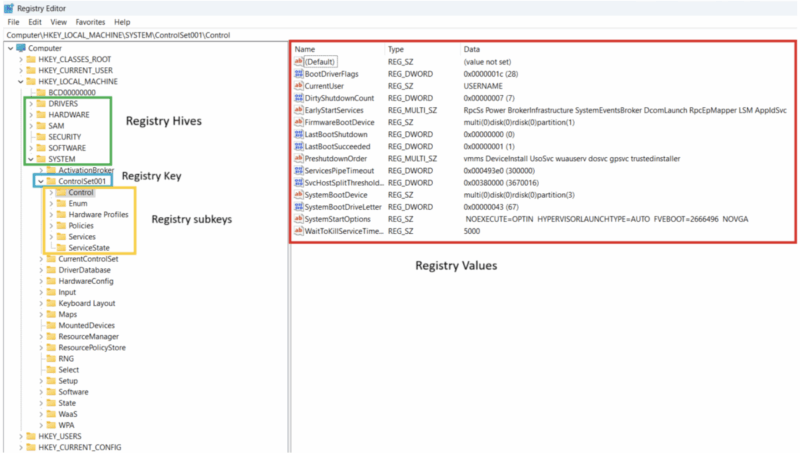

What Is the Windows Registry?

A hierarchical structured database used by the system and applications to store configuration data, state information, usage telemetry, and more.

The following are key concepts related to the Windows Registry:

Ex. C:\windows\system32\Config\SOFTWARE

Ex. C:\windows\System32\Config\SOFTWARE.LOG1

Ex. HKLM\Software

Where can you find registry data

Registry data is stored in several places on the system.

• Memory
• Disk – registry file
• Disk – transaction logs

Memory: System specific registry hives are loaded into memory on system startup and user specific registry hives are loaded each time a user logs onto the system. The memory view of the registry is the most up to date and current view, however, not all registry data will be found in memory. For example you may have 10 users on a system and if only 1 user is logged on then only that users specific registry hives will be in memory. The other users registry data will only be found on disk.

Disk: The registry, as it exists on disk, is a bit more complex as the data may be broken up among multiple files: the primary registry file and the transaction log files. The primary registry files contain the bulk of the registry data whereas the transaction logs contain recent changes that have yet to be committed to the primary file. As a result, both files need to be analyzed to get a full picture of the registry hive when not loaded in memory.

Changes are made to the in memory version of the registry and are written to transaction logs and the on-disk registry files on periodic intervals or when a hive is unloaded (ex. user logoff/system shutdown). To get a better understanding on when changes are flushed from memory to transaction log and finally primary registry files check out this helpful resource.

C:\Windows\System32\Config

C:\Users\<Username>\

C:\Users\<Username>\AppData\Local\Microsoft\Windows\

%LOCALAPPDATA%\Packages<PackageFamilyName>\SystemAppData\Helium\

C:\Windows\AppCompat\Programs\

Primary Registry Hives and Their On-Disk Locations

These files are stored on disk and loaded into memory when the system boots or a user logs in. They are often the source files examined during forensics. Note this is not an exhaustive list of every registry hive, just the highest value ones.

C:\Windows\System32\Config\SOFTWARE

CC:\Windows\System32\Config\SYSTEM

C:\Windows\System32\Config\SECURITY

C:\Windows\System32\Config\SAM

C:\Users\<Username>\NTUSER.DAT

C:\Users\<Username>\AppData\Local\Microsoft\Windows\UsrClass.dat

%LOCALAPPDATA%\Packages\<PackageFamilyName>\SystemAppData\Helium\User.dat

%LOCALAPPDATA%\Packages\<PackageFamilyName>\SystemAppData\Helium\UserClasses.dat

C:\Windows\AppCompat\Programs\Amcache.hve

Registry Files and Their Forensic Value

We will be touching on a few key registry hives and some of their most popular artifacts. For more thorough breakdowns check out our Registry Forensics Cheatsheet and NTUSER.dat forensic analysis blogs.

Check out the following resources if you are interested in diving deeper into the registry artifact rabbit hole:

• RegSeek: A repository of registry artifacts with a UI to make finding registry artifacts easier.
• RegRipper4: Popular registry parsing tool, by Harlan Carvey,  with an extensive list of registry parsing plugins.
• RECmd:  Popular registry parsing tool, by Eric Zimmerman, with an extensive list of registry parsing artifacts scripted out. One example is Kroll_Batch with over 100 keys parsed out of the NTUser.dat hive.

Tools for Registry Forensics

There are many options available to interact with registry data. We will touch on some of the most popular options for interacting with the registry. If you want a deeper dive check out our Registry Forensics Tool Guide.

Parsing registry from memory:

• volatility
• MemProcFS

Accessing live registry (running system):

• Using PowerShell cmdlets.
• Using  Windows APIs.
• Using command line tools like reg.
• Using Regedit.exe or other GUI tools like Total Registry.

Parsing registry files:

• RegRipper4: Tool to automate the parsing of registry hives. Has a large library of pre-built plugins to extract forensic artifacts and allows yara scanning of hives
• Registry Explorer: GUI tool for viewing registry files. Has a large prebuilt list of bookmarks and parsers for common forensic artifacts to help speed up investigations
• RECmd: Similar to regripper, it automates the parsing of registry hives to pull out key forensic artifacts of interest.
• Plaso: Has a registry parsing plugin that parses a hand full of artifacts from the registry to put into a timeline

Windows Registry Forensics with Cyber Triage

Cyber Triage automates the collection of registry hives as well as the parsing of key artifacts from those hives. We also score items of interest to help reduce noise so analysts can focus on higher value data. This means less time worrying about remembering where data is and more time figuring out what happened.

Cyber Triage maps data artifacts like UserAssist and MUICache to Information artifacts (higher level grouping) like Processes. We do this because we believe reviewing information artifacts is easier to understand than having to know the context around each data artifact. You can read more about this approach here.

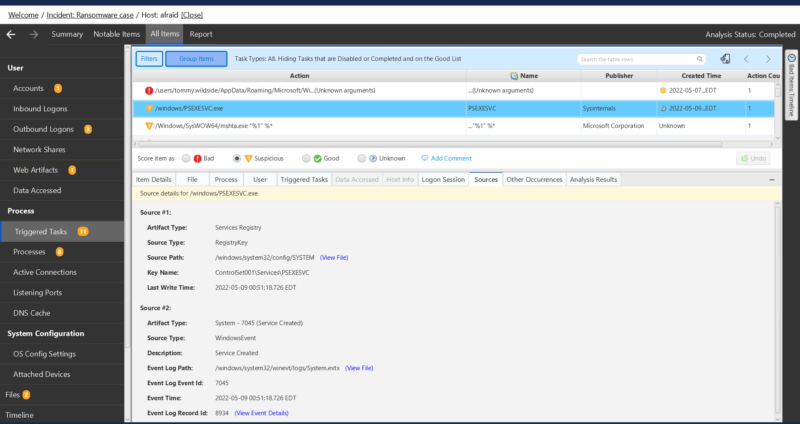

For example if you wanted to know what are all of the binaries that are in persistence locations on a system you could review triggered tasks instead of having to review autoruns outputs, scheduled tasks, services, etc…

Another example would be if you want to know what audit policies are enabled on a host to better understand why data might be missing you would review OS Configuration Settings instead of reviewing each registry key that could be of interest.

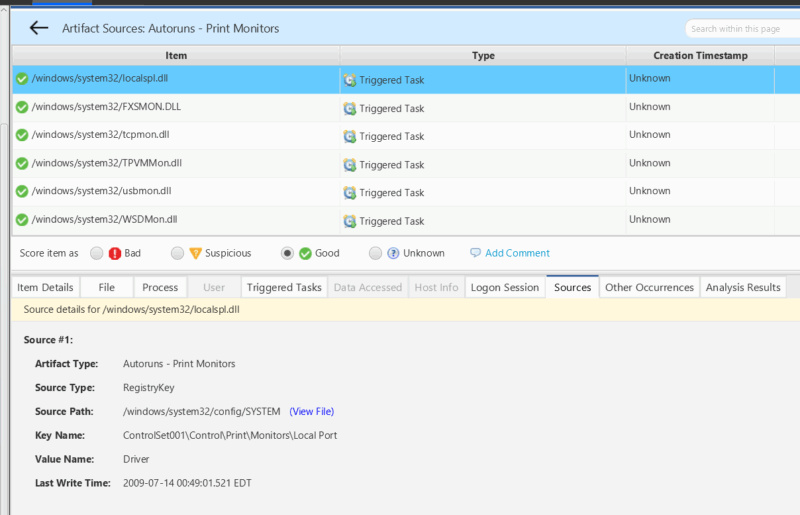

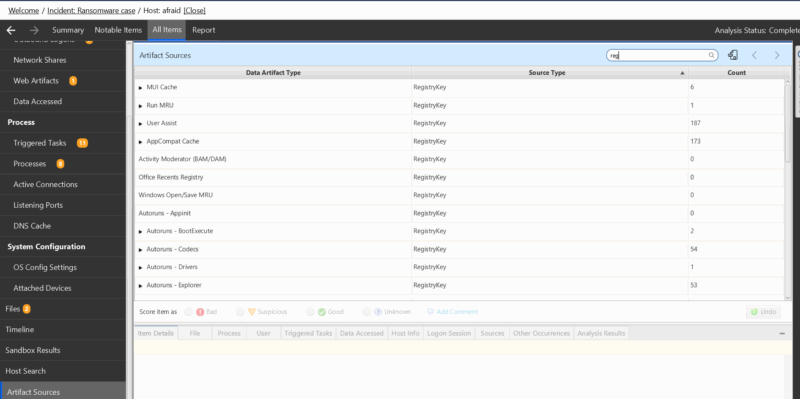

However, if your process involves looking at a specific data artifact like runmru or prefetch then we make that easy for you as well. The Artifact Sources table will break down all of the data artifacts that Cyber Triage processes. Clicking into a data artifact will then display all of the information artifacts created from that data artifact.
