How to Find Evidence of Network Windows Registry

The network need not be a mystery. Learn how to find evidence of network Windows Registry from DFIR expert Chris Ray.

Let’s get to it!

Jump to…

What Is “Network Evidence” in the Windows Registry?
Forensic Relevance of “Network Evidence”
Where to Find Evidence of Network Windows Registry
Keep Learning Registry Forensics

What Is “Network Evidence” in the Windows Registry?

Network evidence in the Windows Registry refers to the traces, configurations, and historical data related to a system’s network activity.

This evidence is embedded in various Registry hives and reveals:

This evidence is scattered across SYSTEM, SOFTWARE, and user-specific hives, and can be correlated with other system artifacts (event logs, file access, etc.).

Forensic Relevance of “Network Evidence”

Network data in the Windows Registry can be crucial for:

Where to Find Evidence of Network Windows Registry

Network Interface Information

Key information you can get network interface artifacts:

• IP configuration info for each interface.
• MAC address for each interface.
• List of interfaces installed on the system.

Let’s look at each in detail:

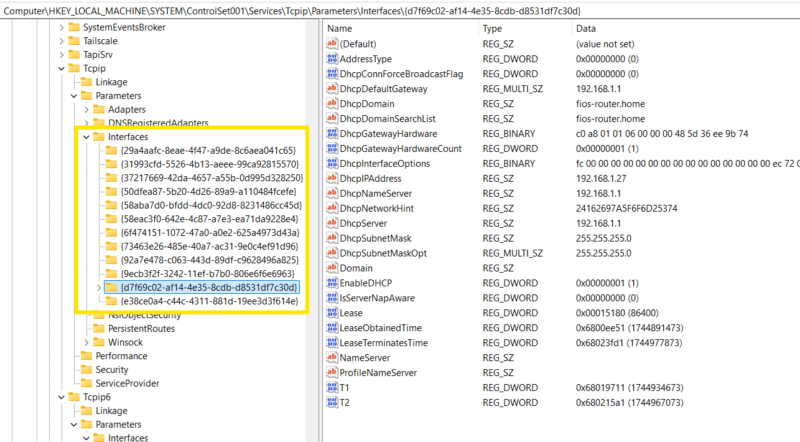

IP Config Info for Each Interface

HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Services\Tcpip\Parameters\Interfaces\

Each subkey represents IP configuration data for an interface. The subkey name represents the interface GUID used to uniquely identify that interface and can be used to correlate information between other artifacts.

Key data each interface can contain:

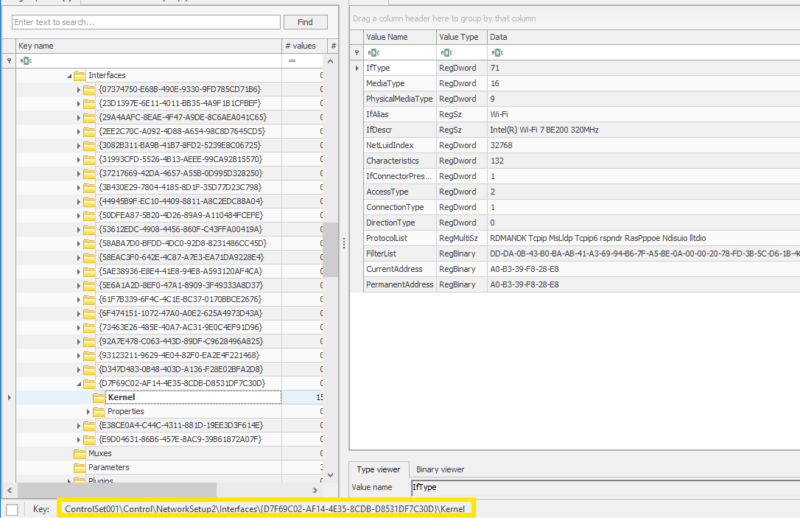

MAC Address for Each Interface

HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Control\NetworkSetup2\Interfaces\{INTERFACE_GUID}\Kernel

Key info:

Note
This information can correlate with the previous information by mapping interface GUIDs

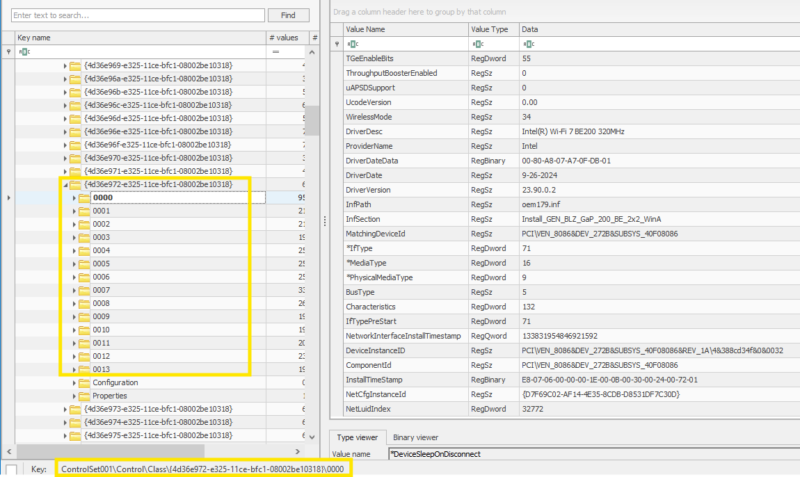

List of Interfaces Installed on System

HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Control\Class\{4d36e972-e325-11ce-bfc1-08002be10318}

Key details:

• Each subkey following the pattern XXXX where X is all numbers indicates an interface.
• To map this data to other data use “NetCfgInstanceId” as interface GUID.
• There is a wealth of technical info here regarding interfaces such as Driver version, driver install date, install timestamp, adapter model, interface enabled,  etc.

Notes
ControlSet001 can be replaced with any other control set. To find the active control set look at HKLM\SYSTEM\Select. The value “current” tells you the number of the current control set.
TcpIP key is specific to IPv4 settings. There is a Tcpipv6 subkey as well for ipv6 settings although we have not seen as much useful information come out of this key from brief testing but we also did not have a full IPV6 environment setup

To learn more about these keys, review the Registry Explorer plugins for each of them:

• NetworkSettings
• NetworkSetup
• NetworkAdapters

RegRipper3 also has plugins for these Registry keys as well:

• NIC2.pl
• Networksetup2.pl
• MacAddr.pl

Connected Networks

Key info you can get from connected network artifacts:

• Names of networks the system has connected to (wired and wireless)
• First and last connection times for those networks
• Gateway MAC address
• DNS connection suffix

Let’s look at the 2 locations where you can find this data:

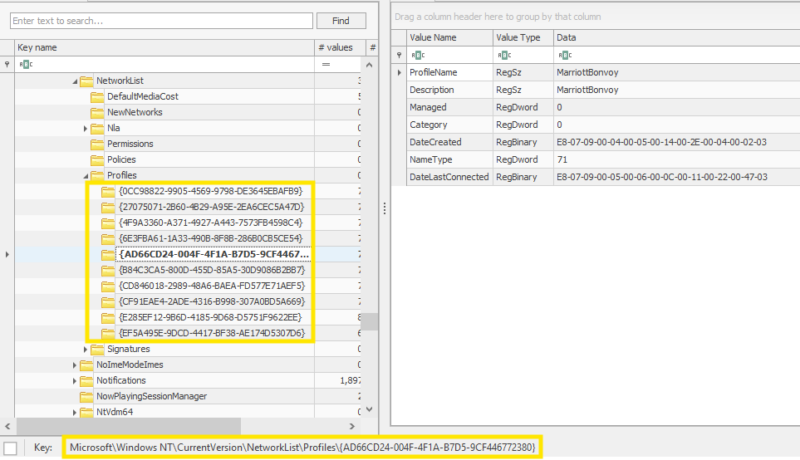

Location #1

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\NetworkList\Profiles\

Each subkey represents metadata regarding a network the system had joined at some point in time. Subkey names is a GUID that can be used to correlate with other data within Profiles key.

Important info you can get from this key:

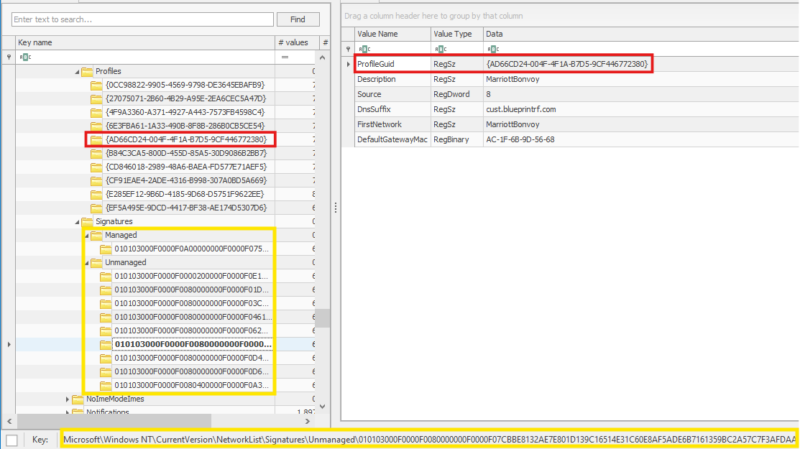

Location #2

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\NetworkList\Profiles\Signatures\*\

Each subkey under Managed or Unmanaged will represent some additional metadata about a joined network.

Important info you can get from this key:

• ProfileGUID: Used to correlate data in this key to previously mentioned Profiles key.
• DNS suffix associated with network connection.
• Default gateway MAC address.

netsh wlan show profiles name="*" key=clear

You can learn more about this key and the data that can be parsed from it in the Registry Explorer plugin here or the RegRipper3 plugin here.

Windows Firewall Rules

Key info you can get firewall rules:

Firewall Config Settings

• Firewall enabled/disabled for various network profiles (domain/private/public).
• Firewall logging location/size.
• Firewall audit settings.
• Excluded interfaces.*

Firewall Rules

• Rules status: Enabled or disabled.
• Rule definition: What does the rule do?

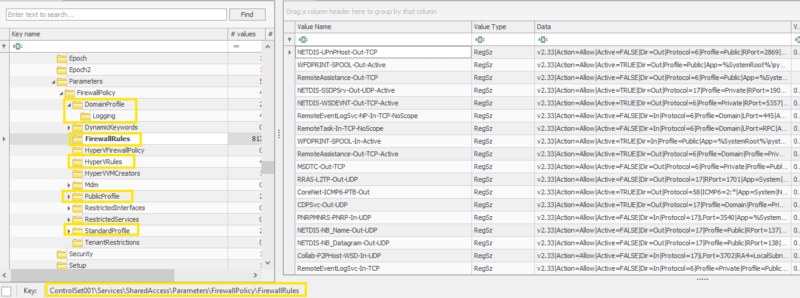

Locations

Firewall settings related to domain network profiles

HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Services\SharedAccess\Parameters\FirewallPolicy\DomainProfile

Firewall settings related to private network profiles

HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Services\SharedAccess\Parameters\FirewallPolicy\StandardProfile

Firewall settings related to public network profiles

HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Services\SharedAccess\Parameters\FirewallPolicy\PublicProfile

Windows firewall rules

HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Services\SharedAccess\Parameters\FirewallPolicy\FirewallRules

Firewall rules for HyperV**

HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Services\SharedAccess\Parameters\FirewallPolicy\HyperVRules

Note
* Windows firewall can be enabled while still not protecting an interface if it’s on interface exclusion list.
** Example: If you have WSL and running an Ubuntu VM, you may have rules under this key.

You can learn more about this key and the data parsed from it in the Registry Explorer plugin here

Other Notable Areas of Interest

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2\

HKEY_CURRENT_USER\Software\Microsoft\Terminal Server Client\Servers\

HKEY_LOCAL_MACHINE\Software\Policies\Microsoft\Windows\CurrentVersion\Internet Settings\
HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Internet Settings\
HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\
